Servidor Serial & Gateway Modbus

Servidor Serial & Gateway Modbus

Os servidores de dispositivos seriais e os gateway Modbus são soluções Serial/Ethernet que permitem aos usuários conectar seus dispositivos seriais isolados à Internet para gerenciamento centralizado da comunicação da máquina, transmissão de dados máquina-a-máquina, máquina nuvem e conectividade de rede.

Descrição

O que são o Servidor Serial e o Gateway Modbus?

Os servidores de dispositivos seriais e os gateways Modbus são soluções Serial/Ethernet que permitem aos usuários conectar seus dispositivos seriais isolados à Internet para gerenciamento centralizado da comunicação da máquina, transmissão de dados máquina-a-máquina, máquina nuvem e conectividade de rede.

Os servidores de dispositivos da convertem conexões RS-232/422/485 para conexão Ethernet, permitindo comunicação perfeita entre dispositivos tradicionais baseados em comunicação serial, como PLC, medidores, sensores e leitores de código de barras, para um dispositivo Ethernet baseado em IP.

Normas e selos de qualidade

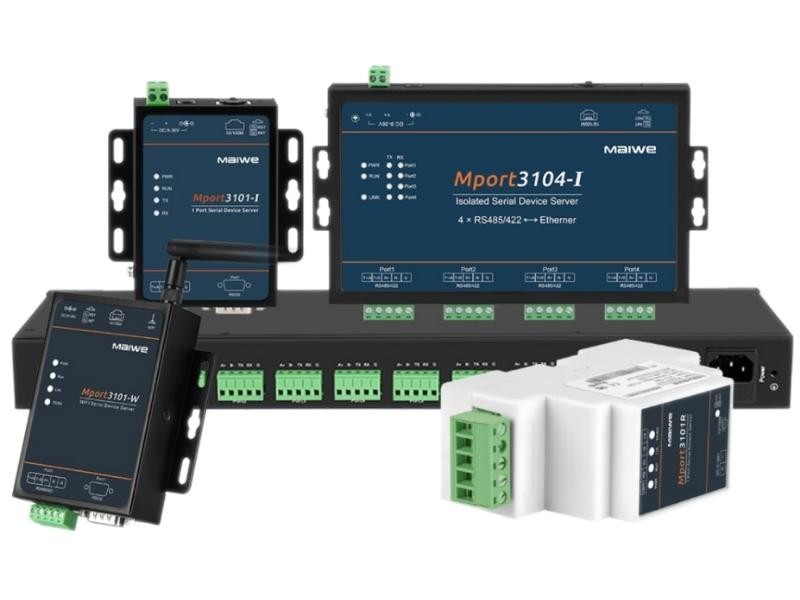

Modelos

Mport3101

• 1-port RS232/485/422 Serial to 100M Ethernet Server & Modbus Gateway
• RS-232/RS-485/RS-422 serial interface up to 2kV surge protection
• Up to 6kV lightning protection on Ethernet interface
• Support Modbus RTU/ASCII to Modbus TCP conversion
• Support VirtualCOM software management

Mport3101 series products mainly realize the data transmission between Ethernet and serial port (RS-232/RS-485/RS422). This series of products is based on the 32-bit ARM Cortex-M7 main control CPU to realize the function of one Ethernet interface and two serial ports to communicate and exchange data. This series of products converts serial devices in the field of industrial automation to the communication format of the Ethernet network, so that RS-232/RS-485/RS422 devices that were previously unable to access the Internet can be easily and flexibly linked to the network.

Mport3101-I

• 1-port RS232/485/422 Serial to 100M Ethernet Opto-isolated Server & Modbus Gateway
• RS-232/RS-485/RS-422 serial interface up to 4kV surge protection
• Up to 6kV lightning protection on Ethernet interface
• Support Modbus RTU/ASCII to Modbus TCP conversion
• Support VirtualCOM software management
• Support opto-isolation

Mport3101-I series products mainly realize the data transmission between Ethernet and serial port (RS-232/RS-485/RS422). This series of products is based on the 32-bit ARM Cortex-M7 main control CPU to realize the function of one Ethernet interface and two serial ports to communicate and exchange data. This series of products converts serial devices in the field of industrial automation to the communication format of the Ethernet network, so that RS-232/RS-485/RS422 devices that were previously unable to access the Internet can be easily and flexibly linked to the network.

Mport3101R

• 1-port RS232/485 Serial to 100M Ethernet Server & Modbus Gateway
• RS-232/RS-485 serial interface up to 2kV surge protection
• Up to 6kV lightning protection on Ethernet interface
• Support Modbus RTU/ASCII to Modbus TCP conversion
• Support VirtualCOM software management
• Din Rail installation

Mport3101R series products mainly realize the data transmission between Ethernet and serial port (RS-232/RS-485). This series of products is based on the 32-bit ARM Cortex-M7 main control CPU to realize the function of one Ethernet interface and one serial port to communicate and exchange data. This series of products converts serial devices in the field of industrial automation to the communication format of the Ethernet network, so that RS-232/RS-485 devices that were previously unable to access the Internet can be easily and flexibly linked to the network.

Mport3101-W

• 1-port RS232/RS485/RS422 Serial to Wi-Fi/Ethernet Server & Modbus Gateway
• Support RS-232/485/422 to Wi-Fi/Ethernet data transmission, serial rate up to 230400bps
• Support 802.11 b/g/n standard
• Support wireless operation AP/Client/AP+Client mode
• Support IP-MAC binding, static routing, PPPoE, DHCP, static IP and AUTO-IP functions
• Support WAN/LAN mode switching

Mport3101-W is a Wi-Fi serial server product, which provides a solution for transparent transmission or protocol transmission between RS-232/485/422 interface devices and Wi-Fi network or wired network. Supports serial-to-Wi-Fi, serial-to-Ethernet, and Ethernet-to-Wi-Fi functions, and can convert serial (RS-232/485/422) into TCP/IP network interface, making The serial device can easily and quickly connect to the TCP/IP network, realizing the interconnection and intercommunication between the serial and the TCP/IP network.

Mport3102R

• 2*RS232/RS485 Serial to 100M Ethernet Server & Modbus Gateway
• RS-232/RS-485 serial interface up to 2kV surge protection
• Up to 6kV lightning protection on Ethernet interface
• Support Modbus RTU/ASCII to Modbus TCP conversion
• Support VirtualCOM software management
• Din Rail installation

Mport3102R series products mainly realize the data transmission between Ethernet and serial port (RS-232/RS-485). This series of products is based on the 32-bit ARM Cortex-M7 main control CPU to realize the function of one Ethernet interface and two serial ports to communicate and exchange data. This series of products converts serial devices in the field of industrial automation to the communication format of the Ethernet network, so that RS-232/RS-485 devices that were previously unable to access the Internet can be easily and flexibly linked to the network.

Mport3102

• 1*RS485/422 + 1*RS232 Serial to 100M Ethernet Server & Modbus Gateway
• RS-232/RS-485/RS-422 serial interface up to 2kV surge protection
• Up to 6kV lightning protection on Ethernet interface
• Support Modbus RTU/ASCII to Modbus TCP conversion
• Support VirtualCOM software management

Mport3102 series products mainly realize the data transmission between Ethernet and serial port (RS232/RS485/RS422). This series of products is based on the 32-bit ARM Cortex-M7 main control CPU to realize the function of one Ethernet interface and two independent serial ports to communicate and exchange data. This series of products converts serial devices in the field of industrial automation to the communication format of the Ethernet network, so that RS232/RS485/RS422 devices that were previously unable to access the Internet can be easily and flexibly linked to the network.

Mport3104

• 4 ports RS485/422 Serial to 100M Ethernet Server & Modbus Gateway
• 4 ports RS485/RS422 Serial portup to 2kV surge protection
• Up to 6kV lightning protection on Ethernet interface
• Support Modbus RTU/ASCII to Modbus TCP conversion
• Support VirtualCOM software management

Mport3104 series is a secure terminal server that can be used as a web server. Mport3104 is designed for serial devices that require centralized monitoring over a network. The security of data transmission becomes more and more important when a large number of serial devices are connected to the network. Mport3104 can support encryption to ensure the secure and stable networking of serial devices. Mport3104 serial networking server is a terminal server with one 10/100M Ethernet port and four asynchronous serial ports.

Mport3102-I

• 2-port RS485/422 Serial to 100M Ethernet Opto-isolated Server & Modbus Gateway
• RS-485/RS-422 serial interface up to 4kV surge protection
• Up to 6kV lightning protection on Ethernet interface
• Support Modbus RTU/ASCII to Modbus TCP conversion
• Support VirtualCOM software management
• Support opto-isolation

Mport3102-I series products mainly realize the data transmission between Ethernet and serial port (RS-485/RS422). This series of products is based on the 32-bit ARM Cortex-M7 main control CPU to realize the function of one Ethernet interface and two independent serial ports to communicate and exchange data. This series of products converts serial devices in the field of industrial automation to the communication format of the Ethernet network, so that RS-485/RS422 devices that were previously unable to access the Internet can be easily and flexibly linked to the network.

Mport3104-I

• 4-port RS485/422 Serial to 100M Ethernet Opto-isolated Server & Modbus Gateway
• RS-485/RS-422 serial interface up to 4kV surge protection
• Up to 6kV lightning protection on Ethernet interface
• Support Modbus RTU/ASCII to Modbus TCP conversion
• Support VirtualCOM software management
• Support opto-isolation

Mport3104-I series is a secure terminal server that can be used as a web server. Mport3104-I is designed for serial devices that require centralized monitoring over a network. The security of data transmission becomes more and more important when a large number of serial devices are connected to the network. Mport3104-I can support encryption to ensure the secure and stable networking of serial devices. Mport3104-I serial networking server is a terminal server with one 10/100M Ethernet port and four asynchronous serial ports.

Mport3208-AD220

• 8 ports RS232/RS485 Serial to 100M Ethernet Server & Modbus Gateway
• 8 ports RS232/RS485 serial port
• Adopt 32-bit Arm Cortex-M7 core CPU, up to nearly 528MHz main frequency
• 2 10/100M Ethernet ports, which can be configured as switch ports
• Mport3208 series is a secure terminal server that can be used as a web server. Mport3108 is designed for serial devices that require centralized monitoring over a network. The security of data transmission becomes more and more important when a large number of serial devices are connected to the network. Mport3208 supports encryption to ensure the secure and stable networking of serial devices.

Mport3208-I-AD220

• 8 ports RS422/RS485 Serial to 100M Isolated Ethernet Server & Modbus Gateway
• Adopt 32-bit Arm Cortex-M7 core CPU
• 8 ports RS422/RS485 to 2*10/100M Ethernet ports
• Support opto-isolation

Mport3208-I industrial serial server has the characteristics of anti-lightning, anti-electromagnetic interference, high reliability and high performance, and is suitable for use in harsh environments. It mainly realizes data transmission between multiple RS485/422 serial ports and Ethernet. It integrates TCP/IP protocol stack, and the device serial port can be flexibly configured into RS485/422 mode through WEB web page, making it impossible to access the Internet. The RS2485/422 device can also be easily, flexibly and quickly connected to the Ethernet.

Mport3216-I-AD220

• 16 ports RS485/422 Serial to 1000M Isolated Ethernet Server & Modbus Gateway
• 16 RS485/422 serial ports
• 2 10/100/1000M Ethernet TX/FX multiplexing ports, the copper port and the fiber port can be adaptive according to the inserted medium, and the default optical port has priority when both are plugged in at the same time
• Support opto-isolation
• Adopt 32-bit Arm Cortex-A8 core CPU, up to 800MHz main frequency

Mport3216-I-AD220 serial server is a serial port network communication product developed for high-end customers. Through it, users can access the serial port terminal anywhere in the Internet to realize the serial device data transmission application extension function. Mport3216-I-AD220 adopts real dual network port design, has two independent IP addresses, supports multiple application modes. It has 2 10/100/1000M Ethernet TX/FX multiplexing ports, the copper port and the fiber port can be adaptive according to the inserted medium, and the default fiber port has priority when both are plugged in at the same time.
